	Alternative Supplies


	Generator

	We install Generators in all sizes.

	Petrol or Diesel - Single-Phase or 3-Phase

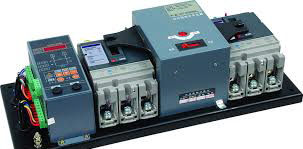

	Manual Change-Over Switch or Automatic-Switch

	We measure and calculate the right size for your needs and help you to find the right supplier.

	The Power of Generator, UPS and Inverter is most labeled with KVA.. It depends on the efficienci factor but roughly KVA x 0.7 = KW

	Generators with more Power coming most with Diesel Motors


	If you need a 5-10KVA generator for remaining power (mobile snack-bar, weekend house, farm work, ..) you should decide for a Diesel Generator or a Petrol Generator with 2 cylinder. A NO-NAME Generator is here not always the best solution.


	Latest by a supply with 3x150A or more you should go for an Change-Over Switch operating with contactors.


	An AUTOMATIC Change-Over Switch is always and for each Generator possible. The Generator starts in this moment automaticly when the Power trips.


	A common size to bridge the power-supply for some hours (Power-Failure) in a Household or small Business is a 5 to 7.5 KVA petrol (1-Cylinder Motor) Generator


	This size is enough to run your lights, fridge, TV, computers, etc. and a kettle or 1-2 plates on your stove.

	Just switch off the geyser and pumps at the DB (elec. Distribution Board)

	To reduce the noise there a sound-damping boxes on the market or you fix your own.



	Standard is a Manual Change-Over Switch installed close to your DB. But of course a more expensive Automatic Change-Over is possible as well.





				We deliver and install Single or 3-Phase Generators for Household and small Business


	UPS & Inverter

	To recommend for Computers, TV’s & decoder, and moveable/pluggable lamps.


	But as a Power-Supply by a Power-Failure or Load-Shedding to compare with a Generator expensive and only for small applications.


	Even a legal installation with Certificate of Compliance is with this small units most more expensive as the installation of a generator. It can’t operate with a change-over switch. You have to split the different circuits or install new circuits


	The price of special batteries and the life-time of this batteries makes it expensive


	But the noise pollution is undisturbing.

	Runtime Guide for Inverter with one 12V and 100A/h Battery

	Runtime Full Load	Runtime Half Load
600W/1KVA	60 min / 600W	120 min / 300W
1KW/1.65KVA	45 min / 1000W	90 min / 500W
1.5KW/2.4KVA	30 min / 1500W	60 min / 750W
2KW/3.3KVA	15 min / 2000W	30 min / 1000W


	You increase the Runtime with a second or third Battery by 12V Invertes


	By 24V Inverters (from 2KW up recommended) you need from the beginning 2x 12V Batteries (or 1x 24V Battery)


	By 24V Inverters you have to double with 2x12V Batteries (or 1x24V Battery)


	Power Usage Guide

LED Down Light

5Watt

Energy Saver Lamp

10Watt

Alarm System

20Watt

LED Spot Lights

10-50Watt

Cell Phone Charger

5Watt

Satellite & Decoder

30Watt

Flat Screen TV

50-150Watt

DVD Player

50-200Watt

Tablet

20Watt

Computer & Modem

+/- 200Watt

Fan

+/-100Watt


	The Power of Generator, UPS and Inverter is most labeled with KVA.. It depends on the efficienci factor but roughly KVA x 0.7 = KW


	*For High End Power Systems we deliver*


	Cyber Power High End Emergency Battery Power System with 7500KVA

	Cyber Power High End Emergency Battery Power System with 5000KVA


	Strong enough to do the Installation with Change-Over Switch and supply the entire Household or Business Unit


	Wind-Generator


Because the 24/7 sound level not to use in Residential Areas

	But on the country site or farm a real Alternative Supply
		and here a completion to Solar Power
